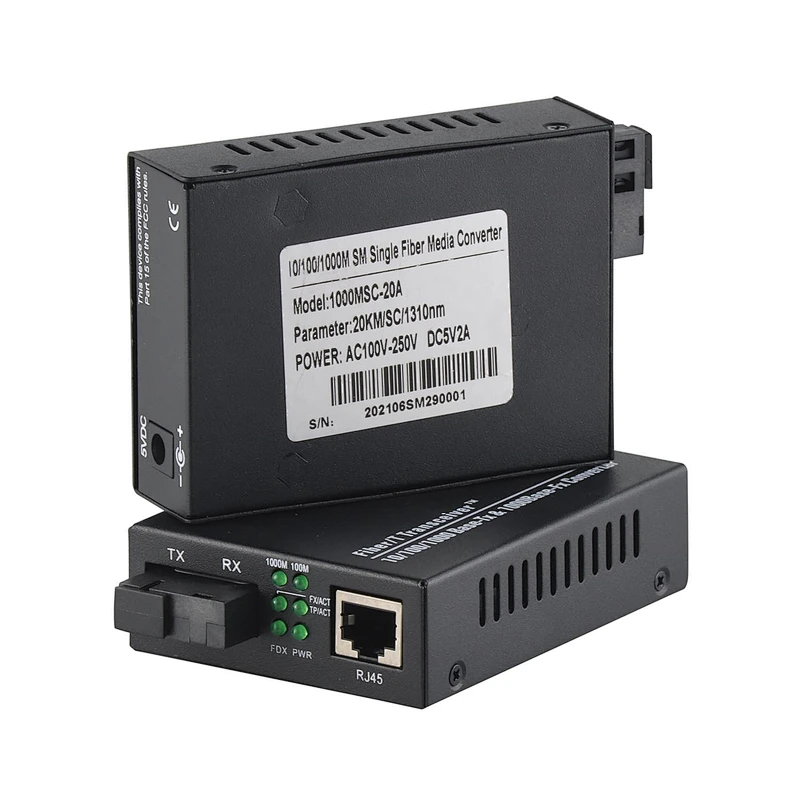

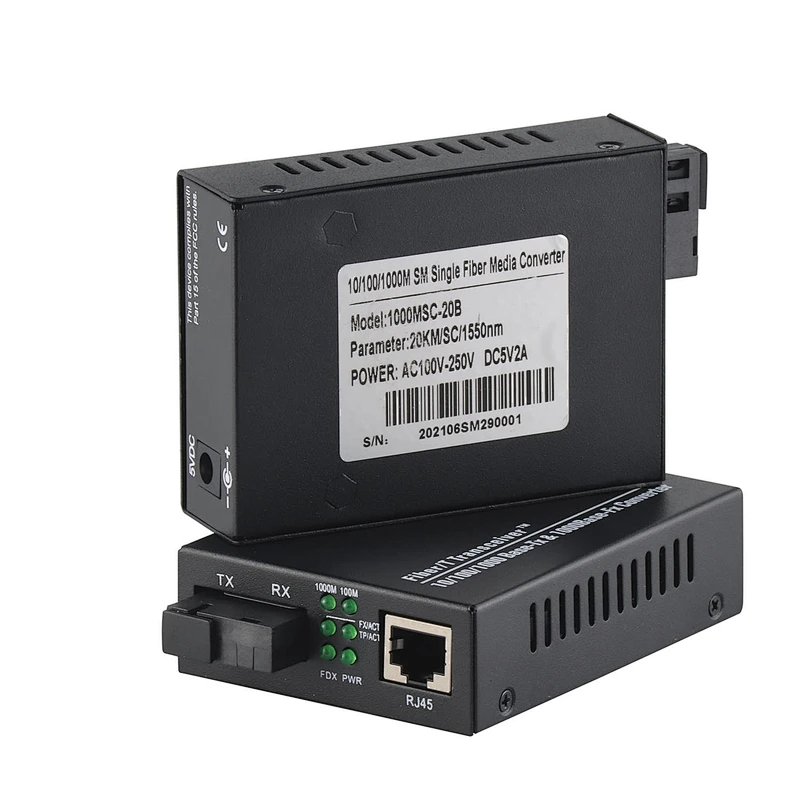

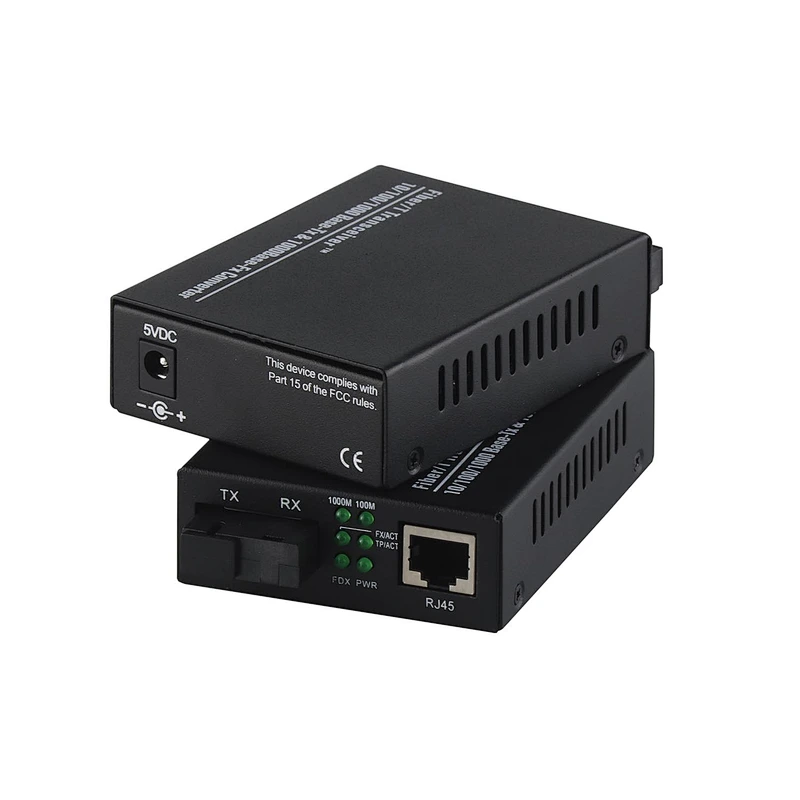

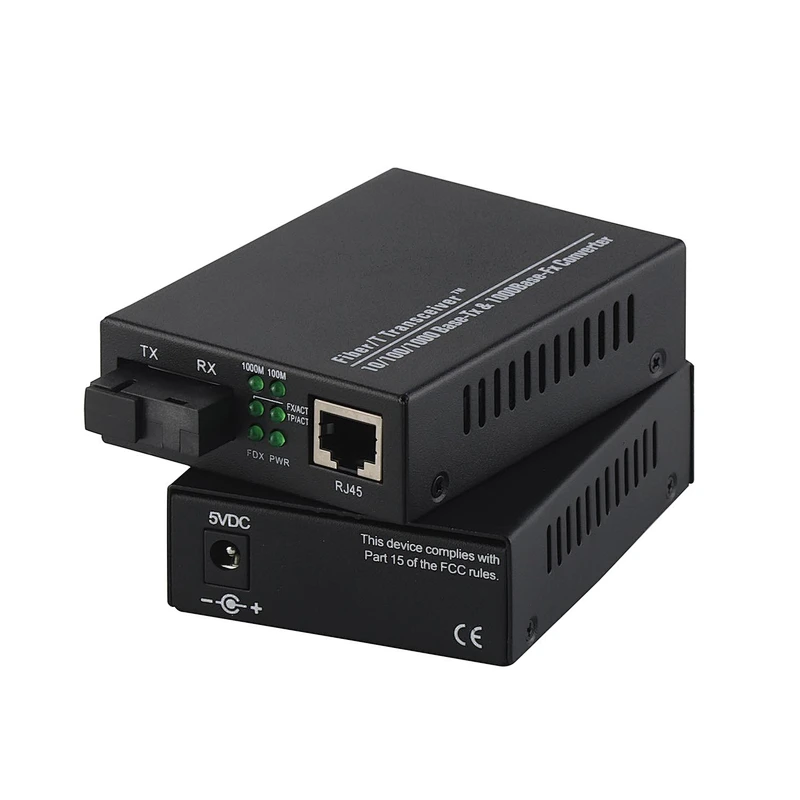

10/100/1000M SC Single Fiber 1310/1550nm Media Converter
10/100/1000M SC Single Fiber 1310/1550nm Media Converter
10/100/1000M SC Single Fiber 1310/1550nm Media Converter
10/100/1000M SC Single Fiber 1310/1550nm Media Converter
10/100/1000M SC Single Fiber 1310/1550nm Media Converter
10/100/1000M SC Single Fiber 1310/1550nm Media Converter
10/100/1000M SC Single Fiber 1310/1550nm Media Converter
10/100/1000M SC Single Fiber 1310/1550nm Media Converter
10/100/1000M SC Single Fiber 1310/1550nm Media Converter
10/100/1000M SC Single Fiber 1310/1550nm Media Converter
10/100/1000M SC Single Fiber 1310/1550nm Media Converter

10/100/1000M SC Single Fiber 1310/1550nm Media Converter

Model NO.
TK101GD-SC20
Price:
US $ 26.22-28.26 / pair
Delivery
EXW
Minimum order quantity
1 pair
Supply Ability
3500 pair / Week
Country of Origin
China
Stock Time
3~5 Days
Quantity:
ParameterSpecifications
Access mode10/100/1000Mbps
StandardIEEE802.3, IEEE802.3u,IEEE802.3Z IEEE802.3x ,1000Base-FX
Wavelength850nm/1310nm/1550nm
Transmission distanceMulti-mode: 2 km;
single mode: 20/40/60/80/100/120 km;
Cat-5 twisted pairs: 100m
Conversion meansStore and Forward mode
Flow controlFull duplex: flow control;
Half duplex: back pressure
Input voltageDC 5V
Power consume<3W
Operating temperature0~50ºC
Operating humidity5%~90%
Maintaining temperature-40~70ºC
Maintaining humidity5% ~ 90% non-condensing
Dimensions71mm (W)×94mm (D)×26 mm (H)
  • Model Number：TK101GD-SC20
  • Brand Name：Takfly
  • Place of Origin：China
