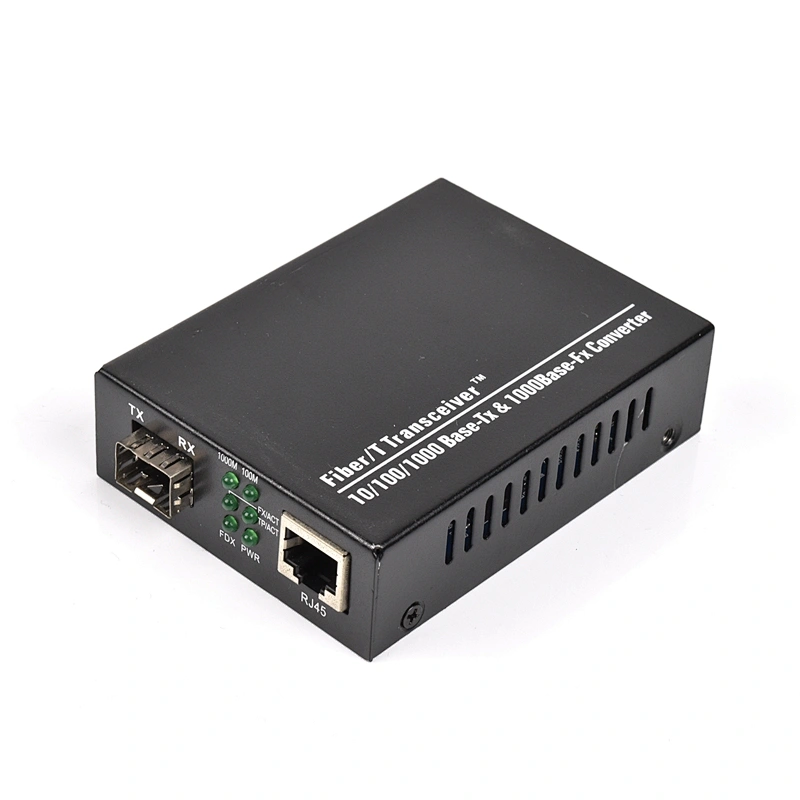

10/100/1000M SM MM SFP to RJ45 Media Converter

10/100/1000M SM MM SFP to RJ45 Media Converter

10/100/1000M SM MM SFP to RJ45 Media Converter

10/100/1000M SM MM SFP to RJ45 Media Converter

10/100/1000M SM MM SFP to RJ45 Media Converter

10/100/1000M SM MM SFP to RJ45 Media Converter

Model NO.: TK101GD-SFP
Price:: US $ 9.16-10.26 / piece
Delivery: EXW
Minimum order quantity: 1 piece
Supply Ability: 7000 piece / Week
Country of Origin: China
Stock Time: 3~5 Days

Quantity:

Band Width	RJ 45 Port:10/100/1000Mbps	Optical Port: 1.25Gbps
Standard Protocol	IEEE802.3 1000 Base-T standard
	IEEE802.3u 10/100/1000Base-SX/TX standard
	IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
	IEEE 802.3z standard.
	IEEE 802.3ab standard.
Connectors	UTP RJ-45	SC/ST/FC/SFP Fiber connector
Operation Mode	Full /Half duplex mode
Power Supply	External	5V DC 2A
	Internal	AC 100-250V/50~60Hz
		DC -36~-72V
	Power Consumption	≤5W
LED Indicators	POW, FDX, TXLink / ACT, SPD, FXLink / ACT, FDX
Environmental Parameters	Work Temperature	0°C~50°C
	Storage Temperature	-40°C~70°C
	Humidity	5%~90% non-condensing
TP Cable	Cat5 UTP cable
Fiber-optic cable	50 / 125μm or 62.5 / 125μm multi-mode fiber cable, up to 220 / 550m	9 / 125μm single-mode cable, provides long distance for 20 /40/ 60/ 80/120km
Dimensions(mm)	External power supply	94mm70mm25mm
	Internal power supply	140mm110mm30mm
	Socket Card	157mm128mm31mm
MTBF (Hours)	Over 50000
Emission/Safety	FCC Part 15 , Class A, RoHS and CE Mark

Model Number：TK101GD-SFP
Brand Name：Takfly
Place of Origin：China
