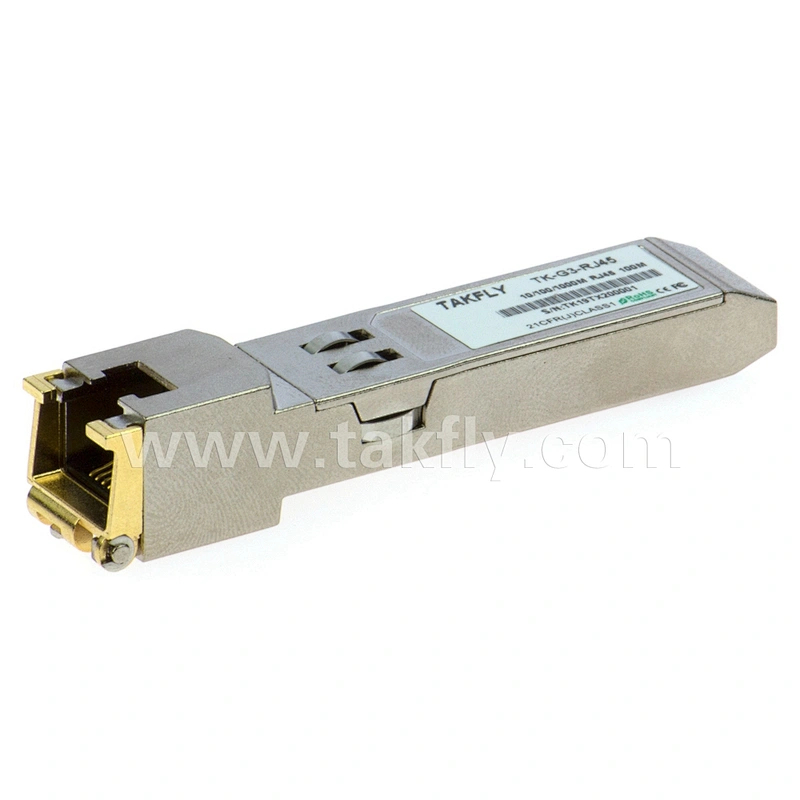

1000BASE-T Copper SFP Transceiver
1000BASE-T Copper SFP Transceiver
1000BASE-T Copper SFP Transceiver
1000BASE-T Copper SFP Transceiver
1000BASE-T Copper SFP Transceiver
1000BASE-T Copper SFP Transceiver
1000BASE-T Copper SFP Transceiver

1000BASE-T Copper SFP Transceiver

Model NO.
TK-G1-RJ45
Price:
US $ 10.65-11.56 / piece
Delivery
EXW
Minimum order quantity
1 piece
Supply Ability
20000 piece / Week
Country of Origin
China
Stock Time
3~5 Days
Quantity:
ParameterSymbolMinTypicalMaxUnitNotes
Transmitter
Centre Wavelengthλcλc-6.5λcλc+6.5nm
Spectral Width (-20dB)λ1nm
Side Mode Suppression RatioSMSR30dB
Average Output PowerPout-50dBm1
Extinction RatioER9dB
Optical Rise/Fall Time (20%~80%)tr/tf0.26ns
Data Input Swing DifferentialVIN4001800mV2
Input Differential ImpedanceZIN90100110Ω
TX DisableDisable2.0VccV
Enable00.8V
TX FaultFault2.0VccV
Normal00.8V
Receiver
Receiver Sensitivity-23dBm3
Receiver Overload-3dBm3
LOS De-AssertLOSD-24dBm
LOS AssertLOSA-35dBm
LOS Hysteresis14dB
Data Output Swing DifferentialVout3701800mV4
LOSHigh2.0VccV
Low0.8V

Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 27-1 test pattern @1250Mbps, BER ≤1×10-12.
4. Internally AC-coupled.
  • Model Number：TK-G1-RJ45
  • Brand Name：Takfly
  • Place of Origin：China

Applications:

◆ Gigabit Ethernet

◆ Fiber Channel

◆ Switch to Switch interface

◆ Switched backplane applications

◆ Router/Server interface

◆ Other optical transmission systems

Send Message

* clear input
*

Related Products

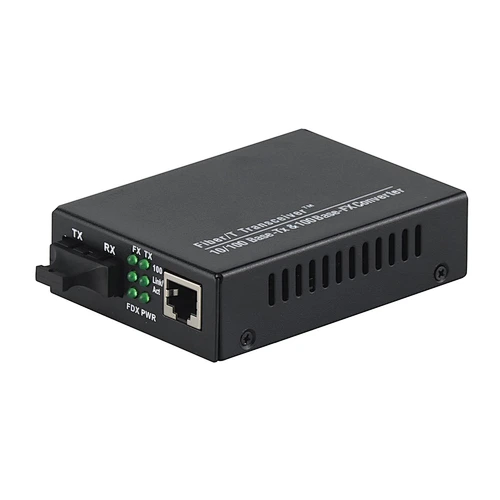

Fast Ethernet 10/100M SC Dual Fiber Media Converter
Fast Ethernet 10/100M SC Dual Fiber Media Converter
Model NO. TK101S-SC

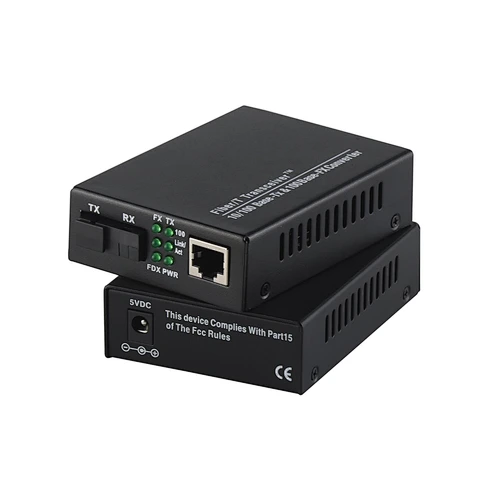

100M SC Single Fiber 1310/1550nm 20Km Media Converter
100M SC Single Fiber 1310/1550nm 20Km Media Converter
Model NO. TK101D-SC20

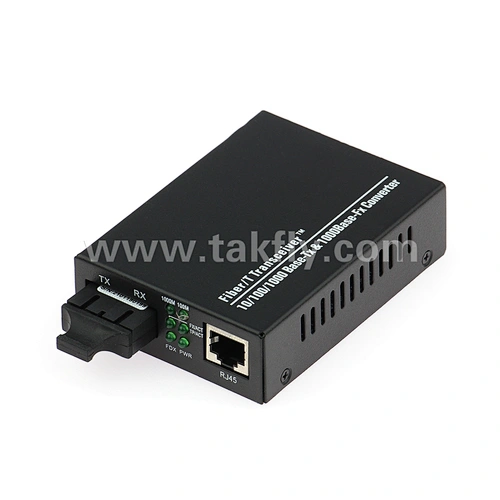

Gigabit 1000M SC Dual Fiber 1310nm 20Km Media Converter
Gigabit 1000M SC Dual Fiber 1310nm 20Km Media Converter
Model NO. TK101GS-SC20

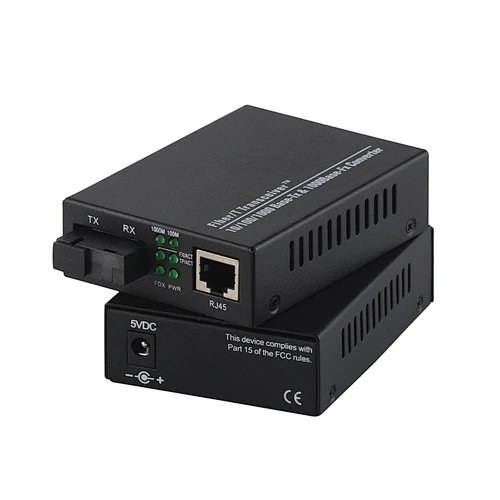

10/100/1000M SC Single Fiber 1310/1550nm Media Converter
10/100/1000M SC Single Fiber 1310/1550nm Media Converter
Model NO. TK101GD-SC20

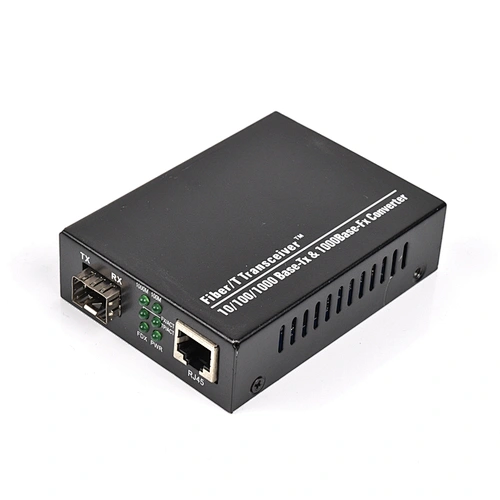

10/100/1000M SM MM SFP to RJ45 Media Converter
10/100/1000M SM MM SFP to RJ45 Media Converter
Model NO. TK101GD-SFP

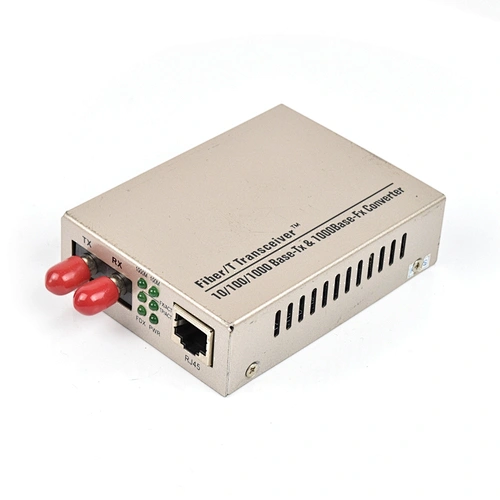

OEM 1000M ST Dual Fiber Optical Media Converter with LFP
OEM 1000M ST Dual Fiber Optical Media Converter with LFP
Model NO. TK101GS-ST2

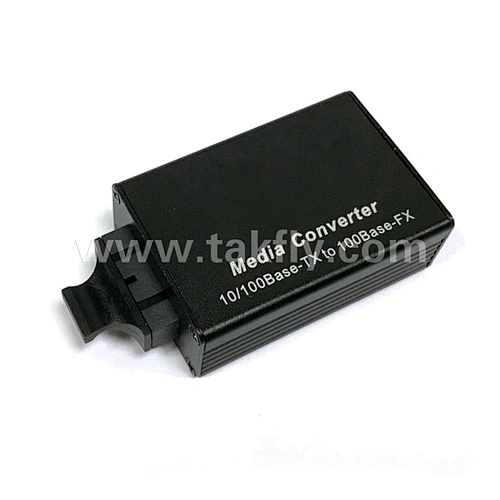

Mini 100M SC Fiber Media Converter 62.3*42.3*22mm
Mini 100M SC Fiber Media Converter 62.3*42.3*22mm
Model NO. TKM101S-SC2

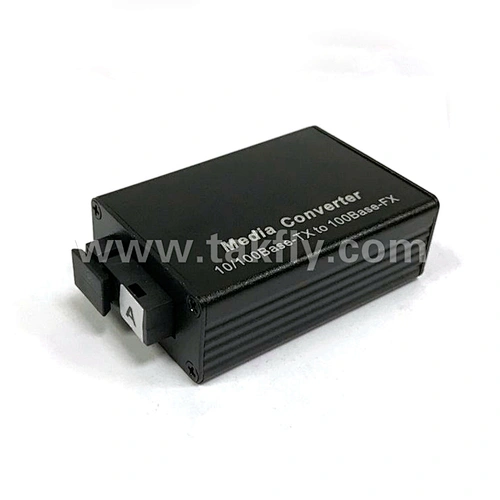

Mini 100M SC Single Fiber 1550nm Media Converter with IEEE802.3u
