1x4 plc optical splitter Features Up to 1 x 64 split Low insertion loss Low PDL, WDL and TDL Wide operating wavelengths Available standalone, boxed, panel-loaded or LGX All connectors available or without connectors as bare fibre Compact design with good channel-to-channel uniformity 1x4 plc splitter specification Mode No. fiber optical splitter 1x4 LGX type Operating Wavelength(nm) 1260~1650 Polishing type SC(APC/UPC) Type(1*N) 1*4 Max Insertion Loss(dB) 4.4 Max Uniformity 0.6 Min Return Loss 50 Max PDL(dB) 0.2 Fiber Type G657A1, G657A2 and G652D Operating Temperature(℃) -40 ~ +85 Storage Temperature(℃) -40 ~ +85
Model Number：TK-PLC-1*4-LGX-SA-SA
Brand Name：OEM/ODM
Place of Origin：Shenzhen, China
fiber optic 1x4 plc splitter application
Telecommunication sector PON Syster FTTH CATV Video Transmission
Related Products
Model NO. TK-PLC-1*8-0.9ST-SA-SA
Model NO. TK-PLC-1*8-2.0ABS-SU-SU
Model NO. TK-PLC-1*8-LGX-SA-SA
Model NO. TK-PLC-1*16-LGX-SA-SA
Model NO. TK-PLC-1*32-LGX-SA-SA
Model NO. TK-PLC-1*16-0.9ST-SA-SA
Wechat scan code or copy link mobile phone open
X

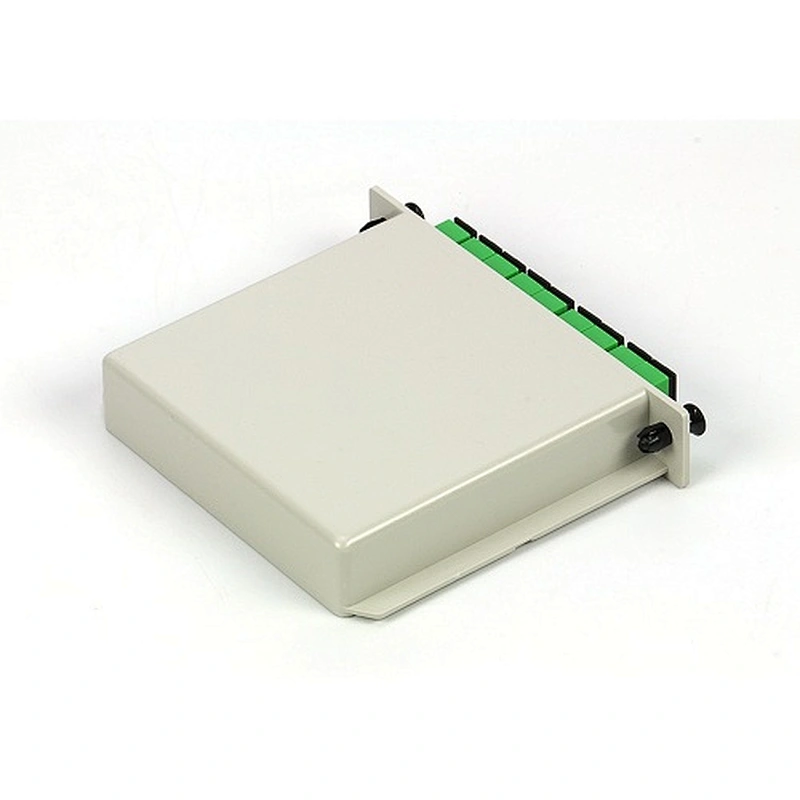

1x4 SC/APC Fiber Optical LGX Type PLC Splitter
TK-PLC-1*4-LGX-SA-SA
3.31~3.49
Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
Send
1x4 SC/APC Fiber Optical LGX Type PLC Splitter
TK-PLC-1*4-LGX-SA-SA
3.31~3.49
Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
