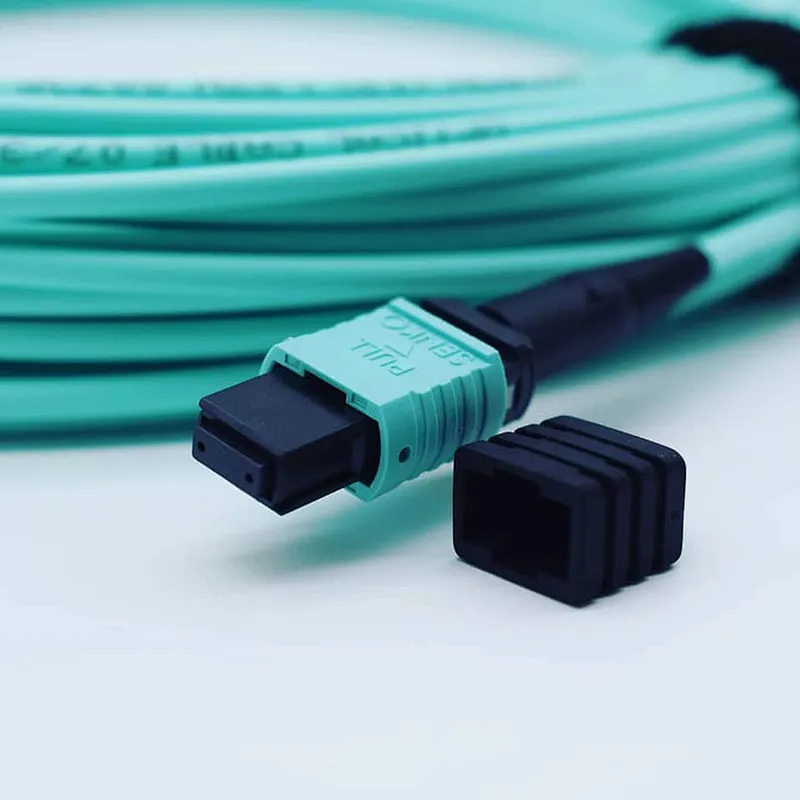

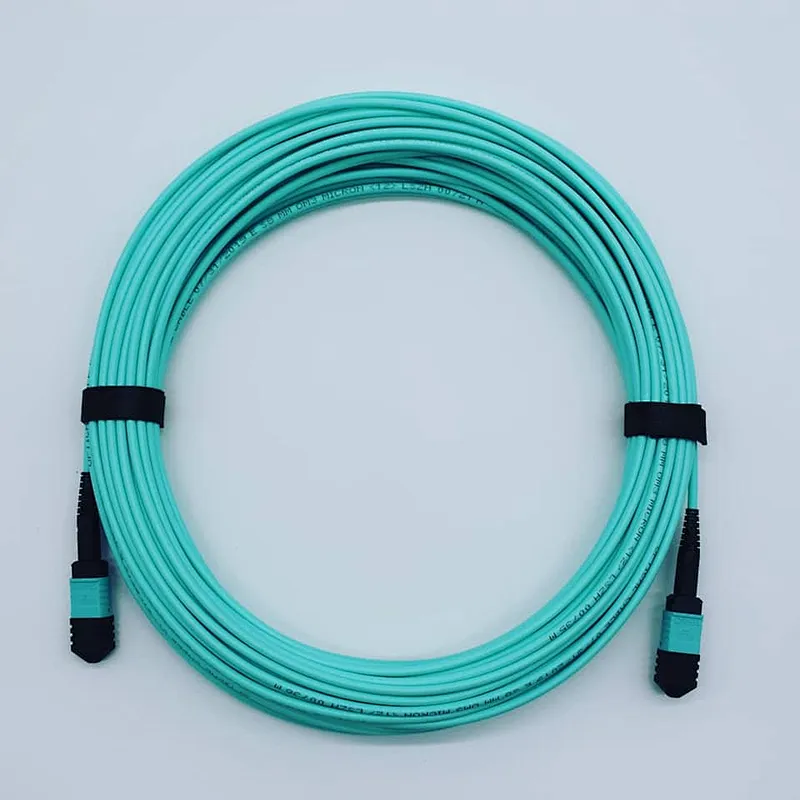

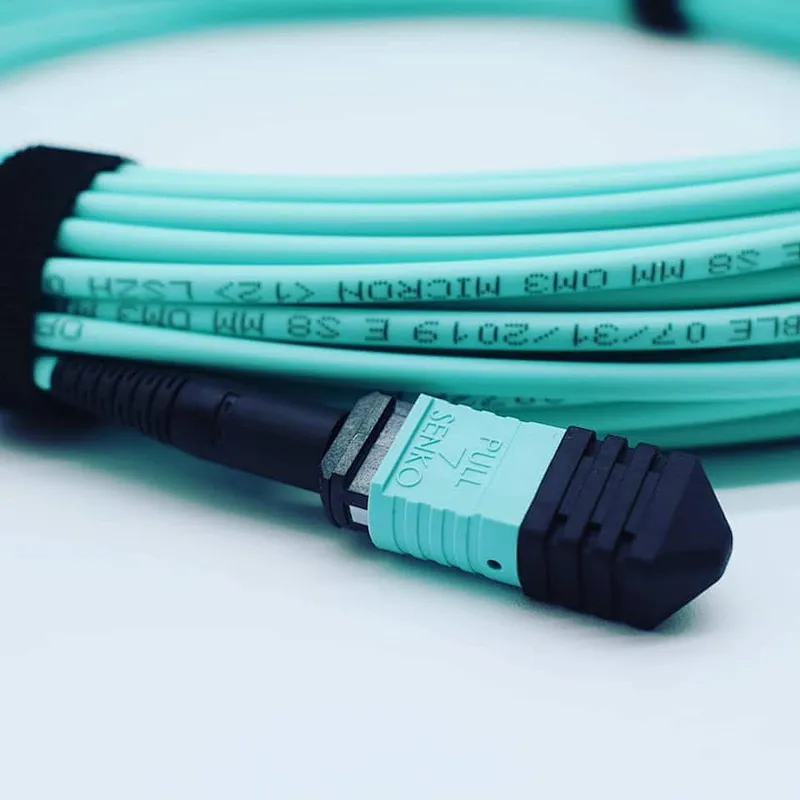

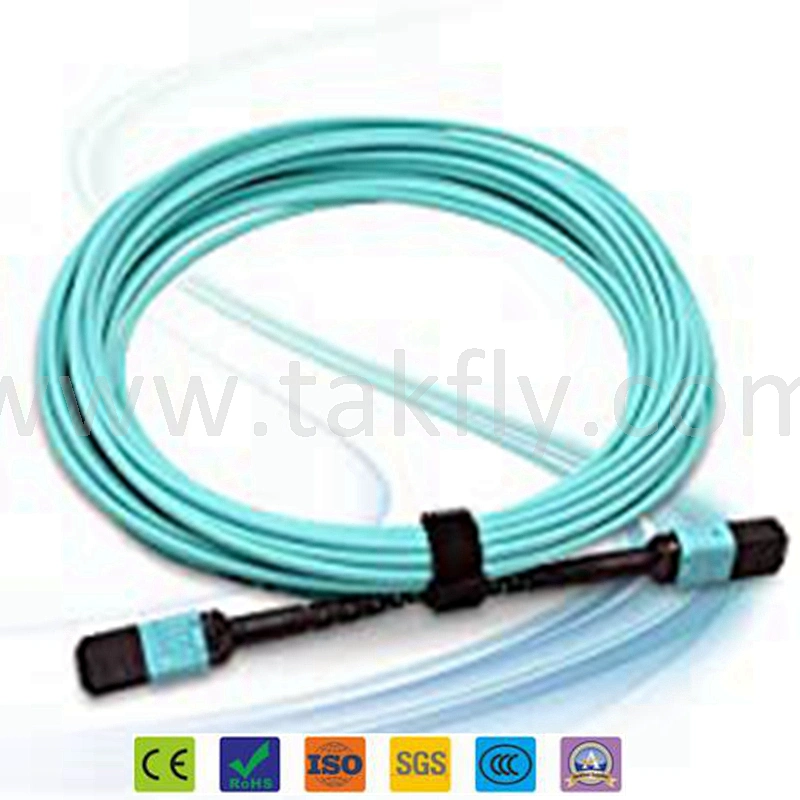

50/125 Multimode OM4 MPO Fiber Trunk Cable, 12 Fiber, Female, Type B, LSZH
50/125 Multimode OM4 MPO Fiber Trunk Cable, 12 Fiber, Female, Type B, LSZH
50/125 Multimode OM4 MPO Fiber Trunk Cable, 12 Fiber, Female, Type B, LSZH
50/125 Multimode OM4 MPO Fiber Trunk Cable, 12 Fiber, Female, Type B, LSZH
50/125 Multimode OM4 MPO Fiber Trunk Cable, 12 Fiber, Female, Type B, LSZH
50/125 Multimode OM4 MPO Fiber Trunk Cable, 12 Fiber, Female, Type B, LSZH
50/125 Multimode OM4 MPO Fiber Trunk Cable, 12 Fiber, Female, Type B, LSZH
50/125 Multimode OM4 MPO Fiber Trunk Cable, 12 Fiber, Female, Type B, LSZH
50/125 Multimode OM4 MPO Fiber Trunk Cable, 12 Fiber, Female, Type B, LSZH

50/125 Multimode OM4 MPO Fiber Trunk Cable, 12 Fiber, Female, Type B, LSZH

Model NO.
OM4 MPO Fiber Trunk Cable
Delivery
EXW,FOB,FCA...
Minimum order quantity
1 piece
Supply Ability
50000 piece / Month
Country of Origin
SHEN ZHEN,CHINA
Stock Time
3-7 Days
Quantity:

Features

• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high back reflection
• Fiber Count: 12 fiber trunk cable
• Laser-Optimized multimode OM4 fiber

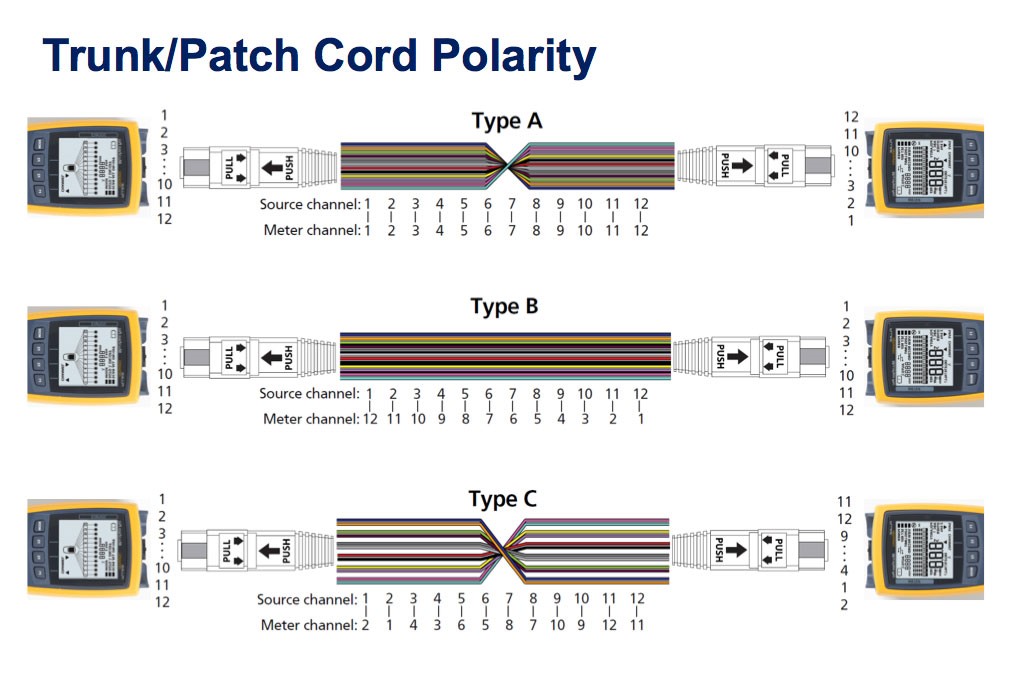

• Type B polarity, used for 40G QSFP eSR4 and 100G QSFP28 SR4 optics
• Optimized performance – available in elite MTP and discrete premium connector upon request
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
• LSZH Jacket by Default



  • Model Number：12 Core MPO/MTP
  • Brand Name：OEM/ODM
  • Place of Origin：SHEN ZHEN,CHINA

Application:

Machine rooms of data center and internet

Data communication network

Optical system access network

Storage area networking fiber channel

High density architectures
