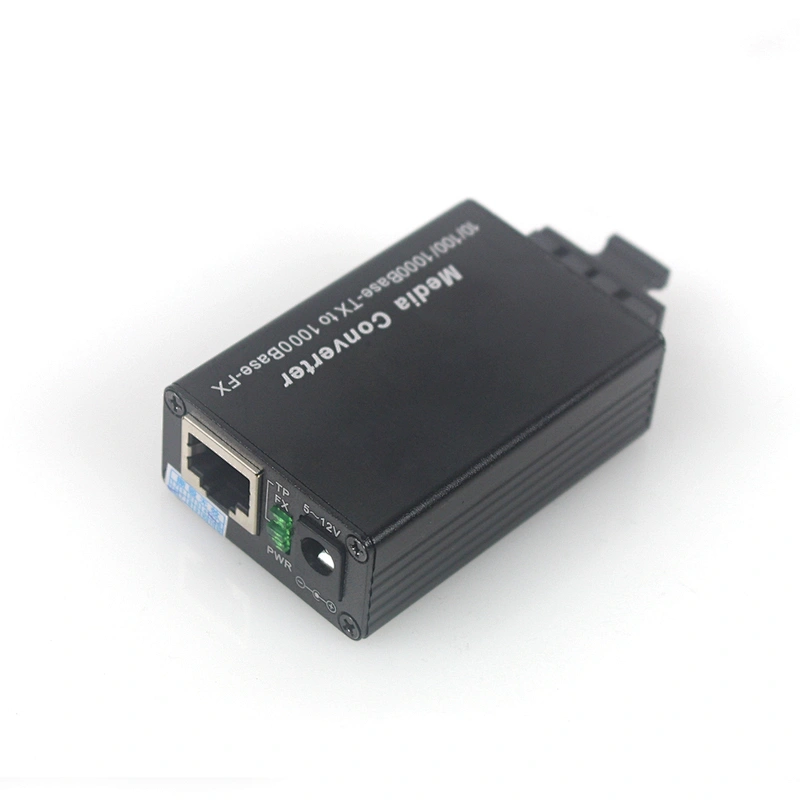

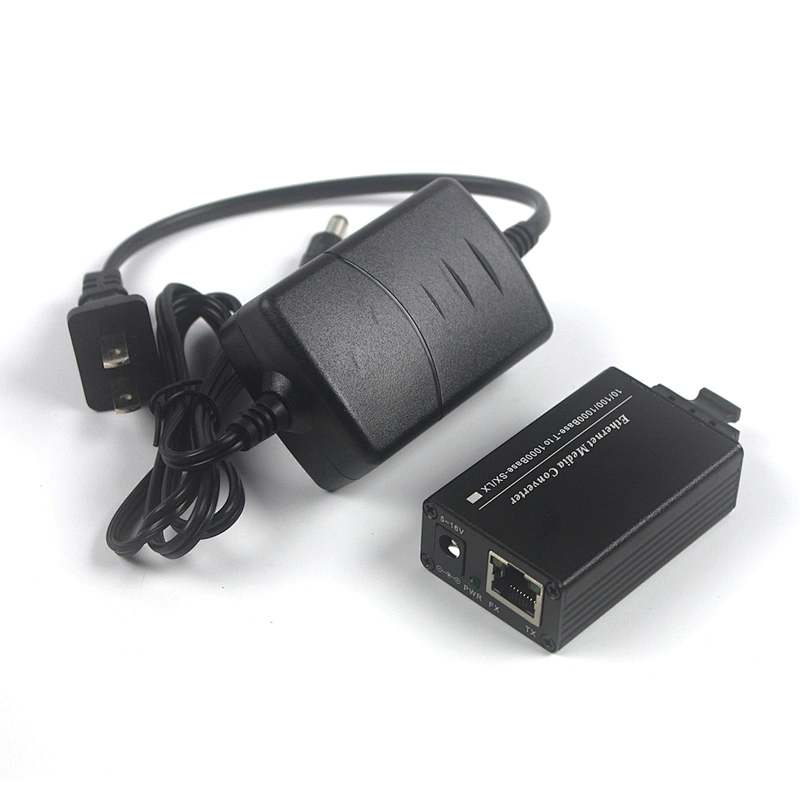

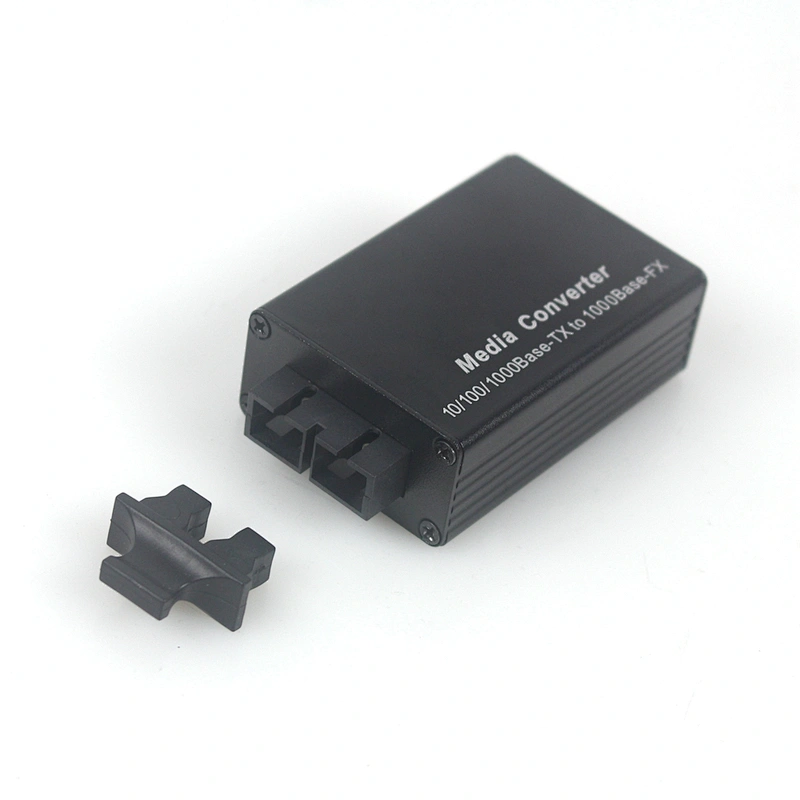

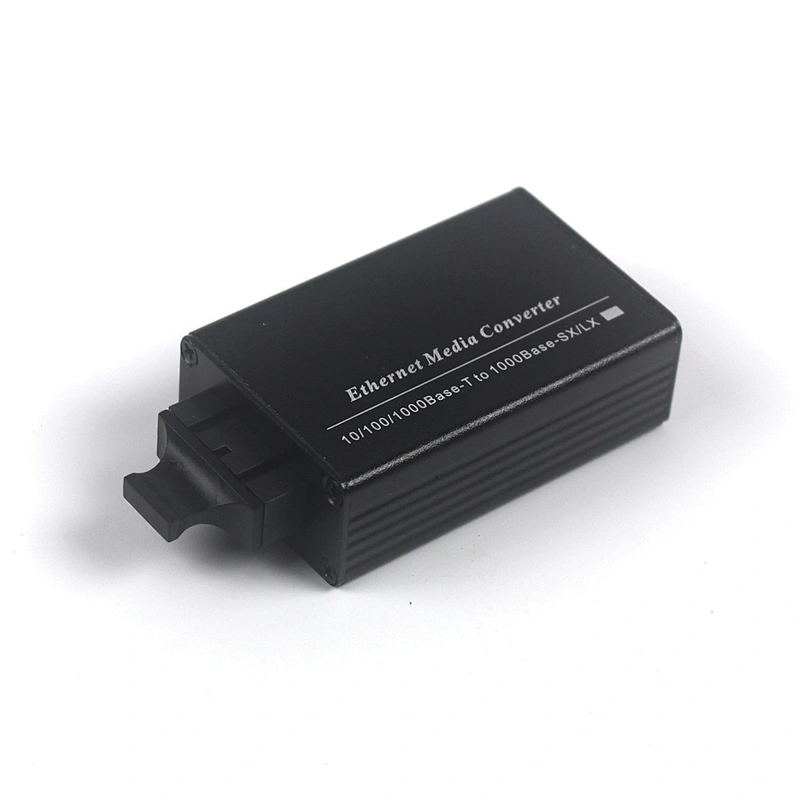

Mini 10/100/1000M Fiber Media Converter SC/FC/ST/LC Connector Optional
Mini 10/100/1000M Fiber Media Converter SC/FC/ST/LC Connector Optional
Mini 10/100/1000M Fiber Media Converter SC/FC/ST/LC Connector Optional
Mini 10/100/1000M Fiber Media Converter SC/FC/ST/LC Connector Optional
Mini 10/100/1000M Fiber Media Converter SC/FC/ST/LC Connector Optional
Mini 10/100/1000M Fiber Media Converter SC/FC/ST/LC Connector Optional
Mini 10/100/1000M Fiber Media Converter SC/FC/ST/LC Connector Optional
Mini 10/100/1000M Fiber Media Converter SC/FC/ST/LC Connector Optional
Mini 10/100/1000M Fiber Media Converter SC/FC/ST/LC Connector Optional

Mini 10/100/1000M Fiber Media Converter SC/FC/ST/LC Connector Optional

Model NO.
TKM101GS-SC2
Price:
US $ 14.96-15.68 / piece
Delivery
EXW
Minimum order quantity
1 piece
Supply Ability
7000 piece / Week
Country of Origin
China
Stock Time
3~5 Days
Quantity:
Protocol Standards IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX
IEEE802.3x Flow control
IEEE802.1q VLAN
IEEE802.1p QoS
IEEE802.1d Spanning Tree
RJ45 Ports ParametersConnector:RJ45
Data Rate: 10/100/1000M
Distance: 0~100m
UTP Type:UTP-5E or higher level
Fiber Port ParametersConnector: SC/FC/ST slot
Data Rate: 1.25G
Optical wavelength:850nm/1310nm/1490nm/1550nm
Distance: 0~120km
PerformanceProcessing Type : Store and Forward
MAC Table Size: 2K
Buffer Space: 1Mbit
Maximum Packet Length:9K bytes
Time Delay:<20μs
PowerInput Voltage:AC100V~240V 50/60Hz
Connector: DC Socket
Working Voltage:5~16VDC
Power Consumption: 0.75W~3W
EnvironmentStorage Temperature: --40 ˚C ~ +70 ˚C
Operating Temperature: -10 ˚C ~ +55 ˚C
Relative Humidity: 5-95% ( no condensation)
Machenical Structure

Dimension: 62.3×42.3×22mm

Weight: 0.1kg

Color: Metal,Black

  • Model Number：TKM101GS-SC2
  • Brand Name：Takfly
  • Place of Origin：China
