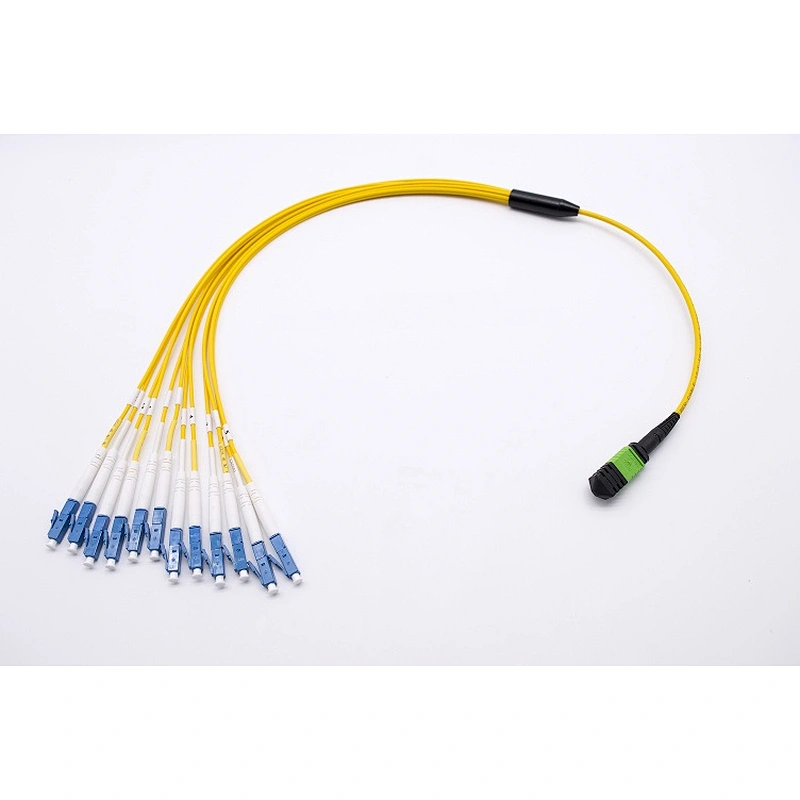

MPO frunk cable which is cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. MPO patchcord/ MPO jumper connectors utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating.
mpo patch cord Features
mpo patch cord Features
Precision molded MT ferrule
High precision guide pins for exact alignment
Compact design, up to 4,8,12,24 fibers
IEC 61754-7 Compliant
EIA/TIA-604-5 Compliant
mpo patch cableSpecification
MPO MTP cable Polarity
mpo patch cableSpecification
| Fiber Mode | G652D |
| Polish Type | UPC to UPC |
| Wavelength | 850/1300nm |
| Insertion Loss | Standard：≤0.35/0.7(Typical/Max） Low Loss：≤0.2/0.35(Typical/Max） |
| Return Loss | ≥20dB |
| Jacket OD | 3.0mm |
| Fanout OD | 2.0mm |
| Length | 1M |
| Cable Jacket | LSZH |
Bending radius (Static/Dynamic) | 10D/20D |
Operating Temperature | -20℃~70℃ |
Storage Temperature | -40℃~80℃ |
MPO MTP cable Polarity
MPO patchcord/ mpo om3 patch cord
- Asynchronous Transmission Mode(ATM)
- Gigabit Ethernet
- Active Deviced/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
