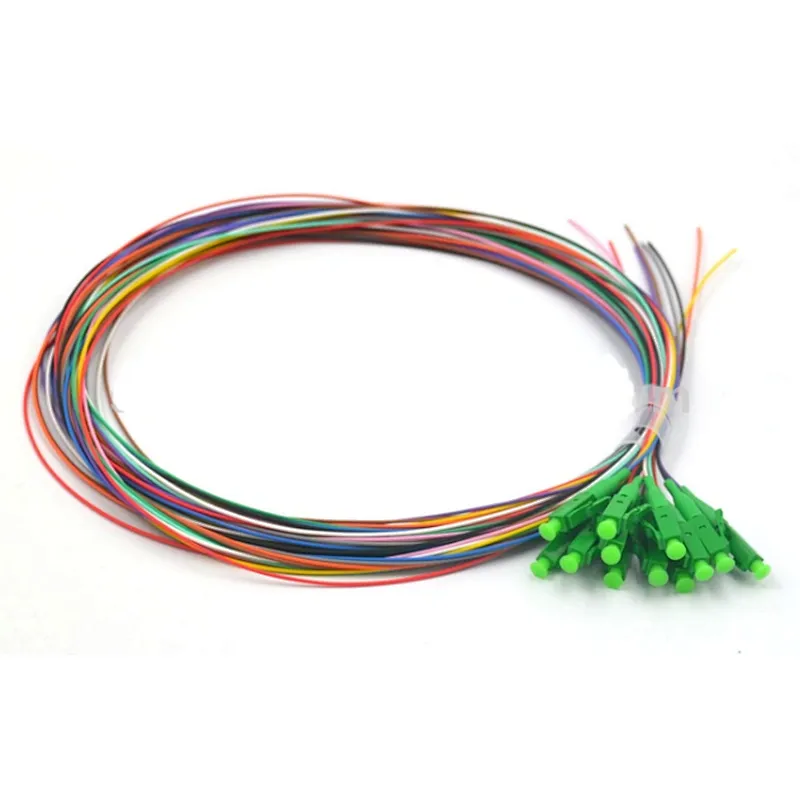

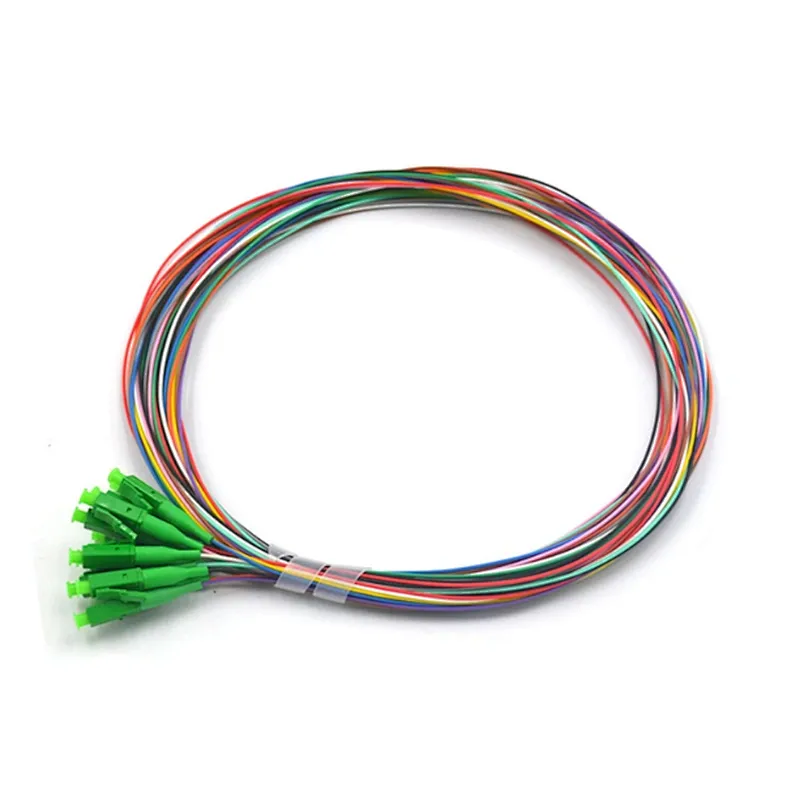

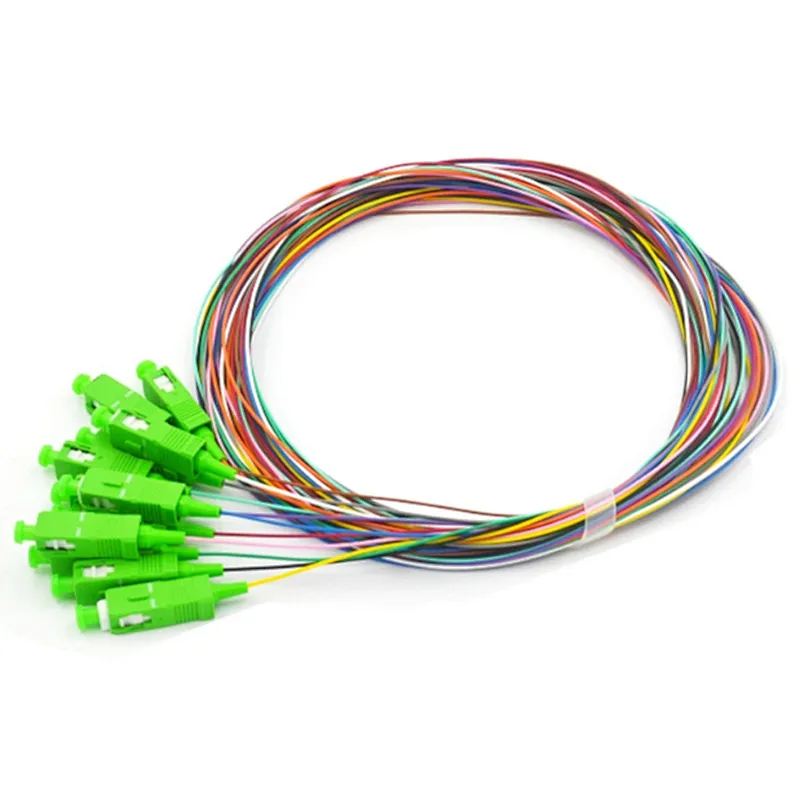

0.9mm 12core fiberoptic pigtail with color
0.9mm 12core fiberoptic pigtail with color
0.9mm 12core fiberoptic pigtail with color
0.9mm 12core fiberoptic pigtail with color
0.9mm 12core fiberoptic pigtail with color
0.9mm 12core fiberoptic pigtail with color
0.9mm 12core fiberoptic pigtail with color

0.9mm 12core fiberoptic pigtail with color

Model NO.
TK-PT-LA-12
Price:
US $ 5.00-6.00 / pieces
Delivery
EXW
Minimum order quantity
100 pieces
Supply Ability
100,000 pieces / Week
Country of Origin
China
Stock Time
3-5 Days
Quantity:

pigtail Features

  • Low insertion loss ans high reflection loss
  • Good exchange ability
  • Good durability
  • High temperature stability
  • Standard: Telcordia GR-326-core

Specification
End face typeUPC and APC
Fiber typeSM（G652/G655/G657）；MM（OM1-OM5）
Cable Diameter2.0/3.0 or customized
Insertion loss≤ 0.3 dB
Return lossUPC SM≥50dB , APC SM≥ 60 dB, PC MM ≥ 35 dB
Repeatability≤ 0.1
Durability≤ 0.2dB
Interchangeability≤ 0.2dB
Tensile strength>70N
Operating Temperature-20 ~70 ℃
Storage Temperature-40 ~80 ℃
Outer Sheath MaterialPVC/LSZH/TPU
Bending radius（Static/Dynamic）10D/20D
LengthCustomized


  • Model Number：TK-PT-LA-12
  • Brand Name：Takfly
  • Place of Origin：Shenzhen, China
Applications
  • CATV
  • Telecommunication networks
  • Active device termination
  • Local area networks(LANS)
  • Data processing networks
  • Test equipment
  • Wide area networks(WANS)
