EC Pigtail
EC Pigtail
EC Pigtail
EC Pigtail
EC Pigtail

EC Pigtail

Model NO.
TK-PT-EC
Price:
US $ 1.25-1.30 / pieces
Delivery
EXW
Minimum order quantity
100 pieces
Supply Ability
100000 pieces / Week
Country of Origin
China
Stock Time
3-5 Days
Quantity:

Features

  • Low insertion loss ans high reflection loss
  • Good exchange ability
  • Good durability
  • High temperature stability
  • Standard: Telcordia GR-326-core

Specification
End face typeUPC and APC
Fiber typeSM（G652/G655/G657）；MM（OM1-OM5）
Cable Diameter0.9mm
Insertion loss≤ 0.3 dB
Return lossUPC SM≥50dB , APC SM≥ 60 dB, PC MM ≥ 35 dB
Repeatability≤ 0.1
Durability≤ 0.2dB
Interchangeability≤ 0.2dB
Tensile strength>5N
Operating Temperature-20 ~70 ℃
Storage Temperature-40 ~80 ℃
Outer Sheath MaterialPVC/LSZH
Bending radius（Static/Dynamic）10D/20D
LengthCustomized


  • Model Number：TK-PT-EC
  • Brand Name：Takfly
  • Place of Origin：Shenzhen, China
Applications
  • CATV2
  • Telecommunication networks
  • Active device termination

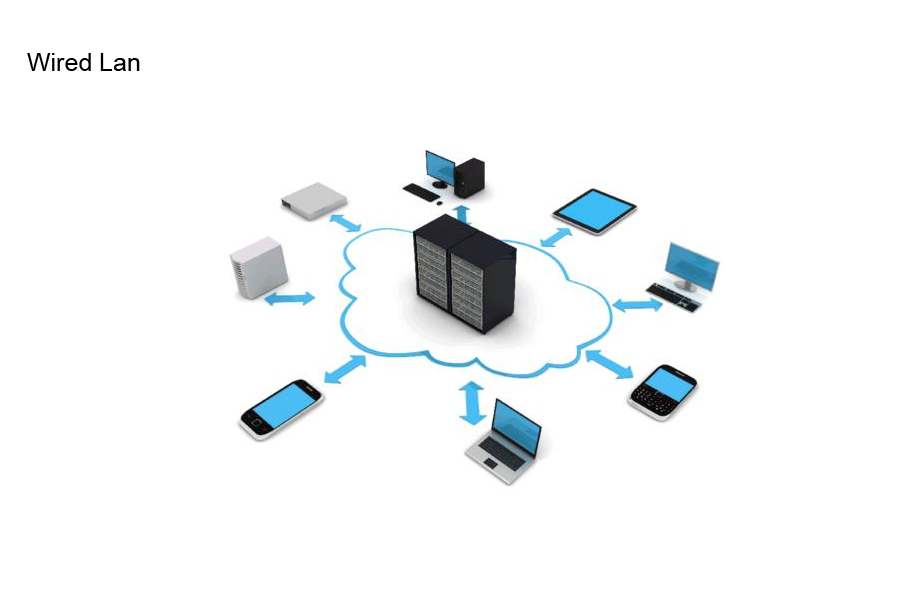

  • Local area networks(LANS)
  • Data processing networks
  • Test equipment
  • Wide area networks(WANS)




Send Message

* clear input
*

Related Products

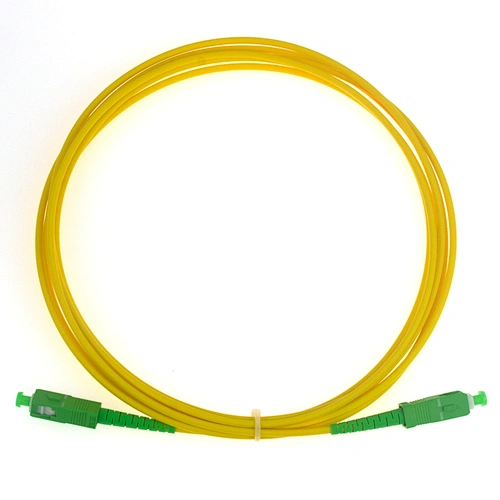

SC-SC SM MM Simplex Duplex 1M LSZH fiber optic patch cord
SC-SC SM MM Simplex Duplex 1M LSZH fiber optic patch cord
Model NO. TK-PC-SCSC1

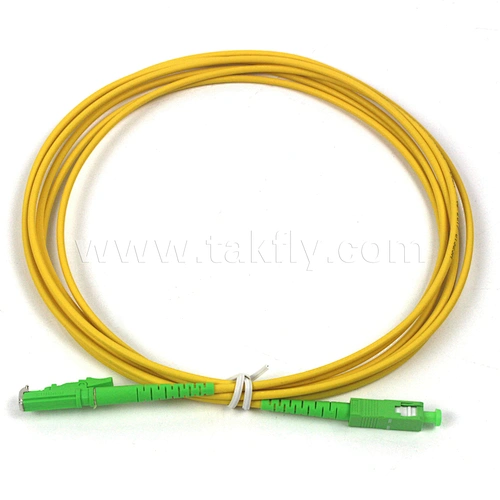

EC-SC SM Simplex 1M LSZH fiber optic patch cord
EC-SC SM Simplex 1M LSZH fiber optic patch cord
Model NO. TK-PC-ECSC1

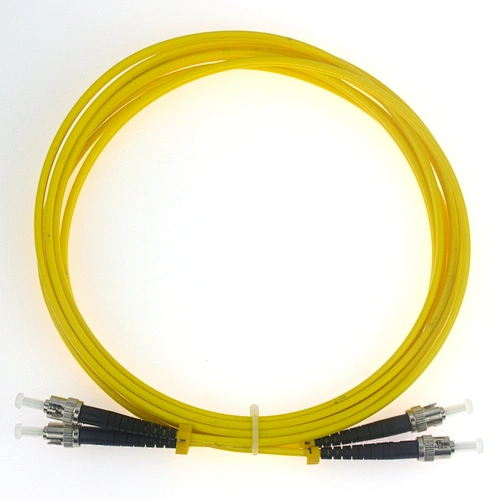

ST-ST SM MM Simplex Duplex LSZH 1M fiber optic patch cord
ST-ST SM MM Simplex Duplex LSZH 1M fiber optic patch cord
Model NO. TK-PC-STST1

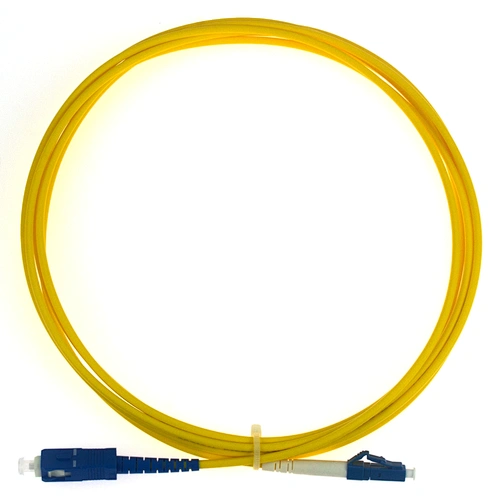

SC-LC SM Simplex Duplex 1M LSZH fiber optic patch cord
SC-LC SM Simplex Duplex 1M LSZH fiber optic patch cord
Model NO. TK-PC-SCLC1

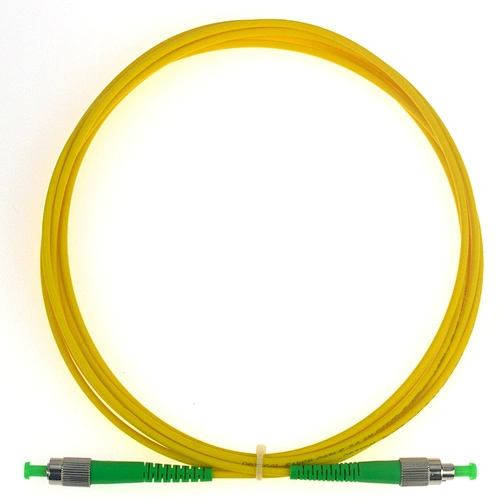

FC-FC SM MM Simplex Duplex 1M LSZH fiber optic patch cord
FC-FC SM MM Simplex Duplex 1M LSZH fiber optic patch cord
Model NO. TK-PC-FCFC1

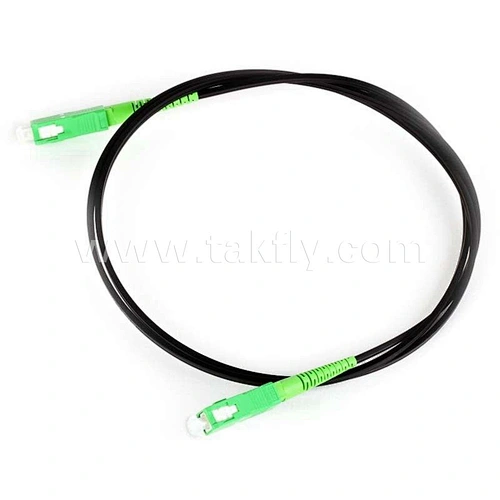

SC-SC FTTH drop cable fiber optic patch cord
SC-SC FTTH drop cable fiber optic patch cord
Model NO. TK-PC-DSCSC1

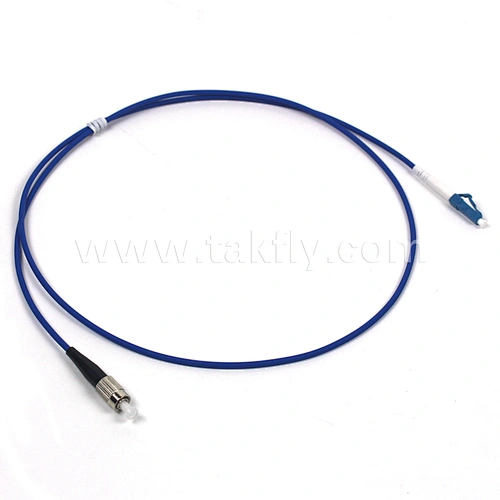

SC/LC/FC/ST SM SX Armored 3.0mm patch cord
SC/LC/FC/ST SM SX Armored 3.0mm patch cord
Model NO. TK-PC-Aomored

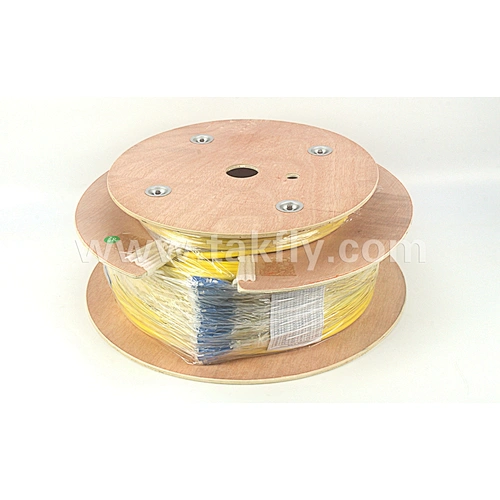

SC UPC SM 48 Cores Fiber Optic Fanout Pigtail
