Description
●It is used for different kinds of modules and applied to the working area subsystem.
●It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free,
can do OEM for any customers and print requested LOGO.
●With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush
plate. All modules can be configured on customer’s choice.
● Cable management can be connected without cutting(with express port)
●All modules are free of welding.
Working area
●The telecommunication network, metropolitan area network, optical fiber communication system.
●Optical testing equipment/instrument.
●CATV optical fiber, optical fiber sensor.
●Optical fiber broadband access network, FTTH optical fiber.
●Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Installation
1. Wall-mounted installation

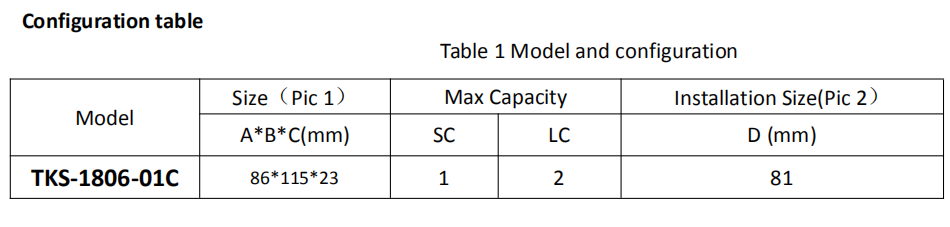

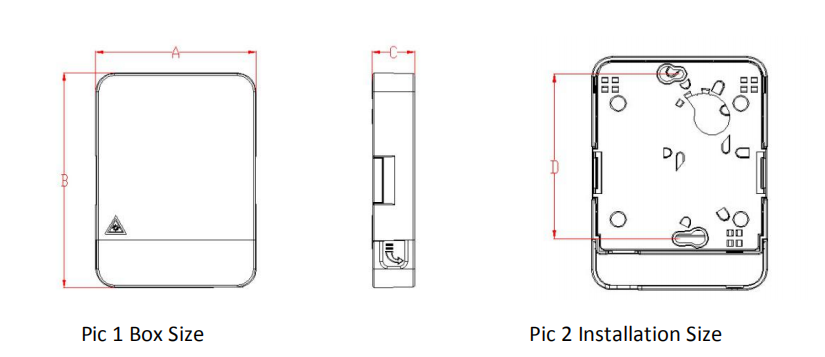

2. Drill 2 holes over the wall based on the size in table 1，place the expansion boltΦ5.5*30，place the box to match up the

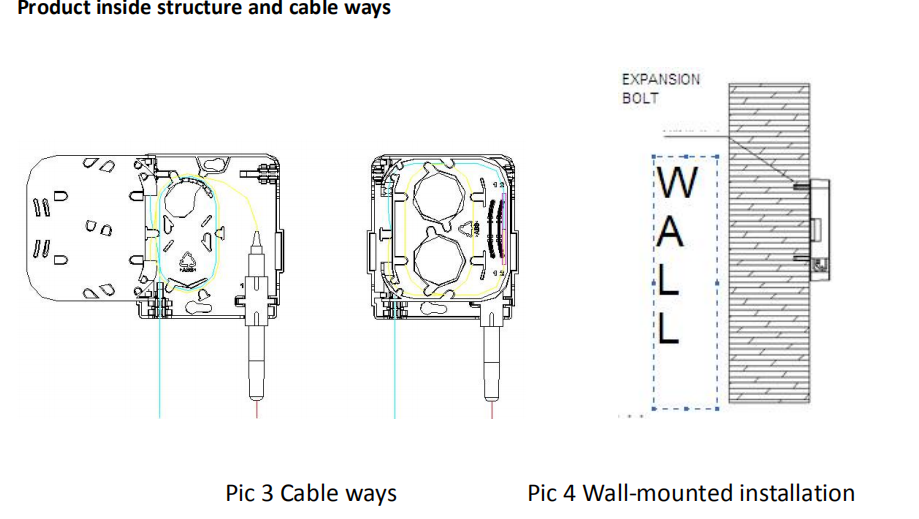

holes and use bolt to fasten.(see Pic 4)
Send Message
Related Products

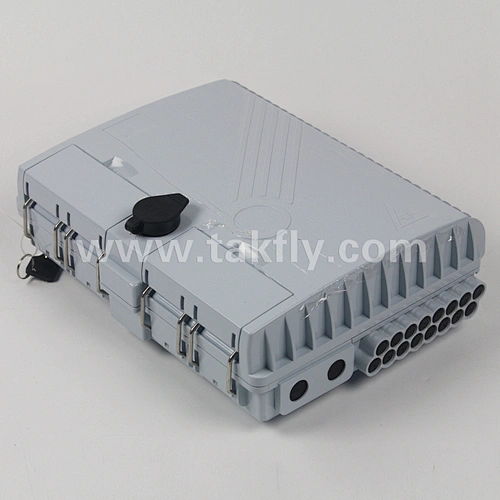

Model NO. 1805-16F

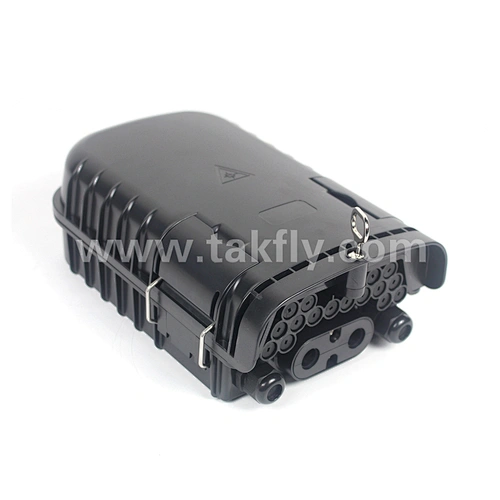

Model NO. 1805-16G

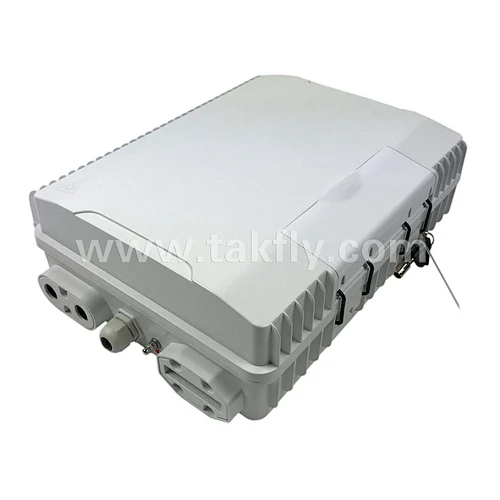

Model NO. 1805-16k/24E

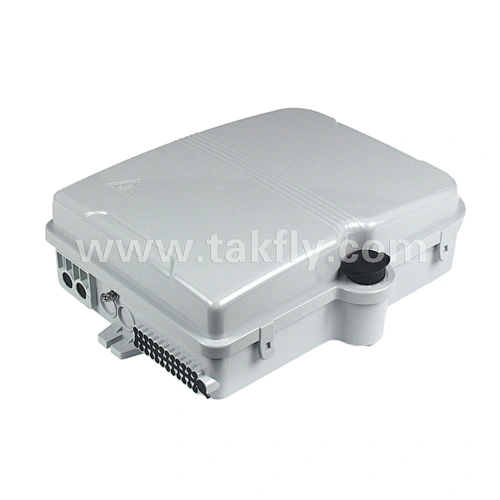

Model NO. 1805-24A1

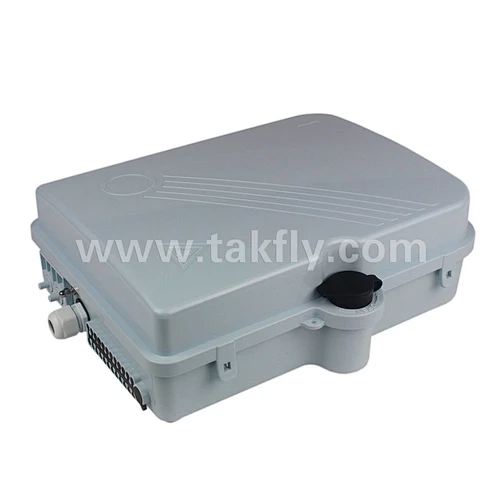

Model NO. 1805-24A2

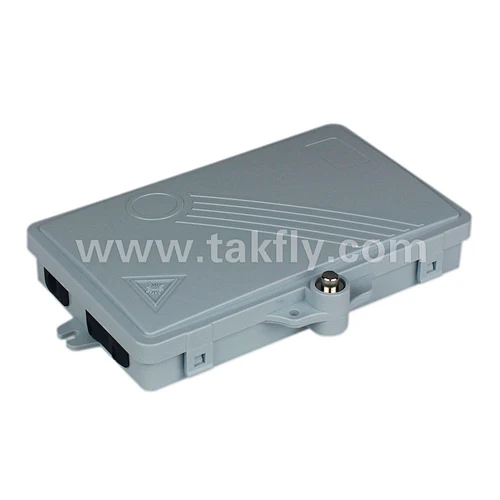

Model NO. 1805-02B

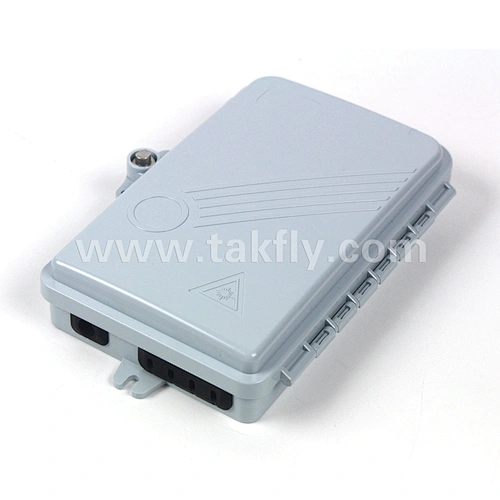

Model NO. 1805-04A
