Working area
The telecommunication network, metropolitan area network, optical fiber communication system.
Optical testing equipment/instrument.
CATV optical fiber, optical fiber sensor.
Optical fiber broadband access network, FTTH optical fiber.
Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Installation
1.Wall-mounted installation

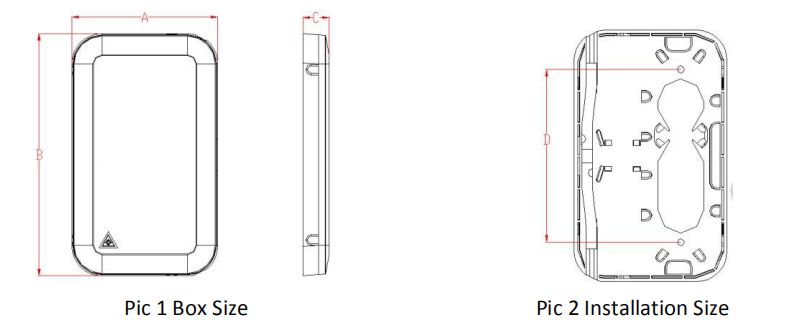

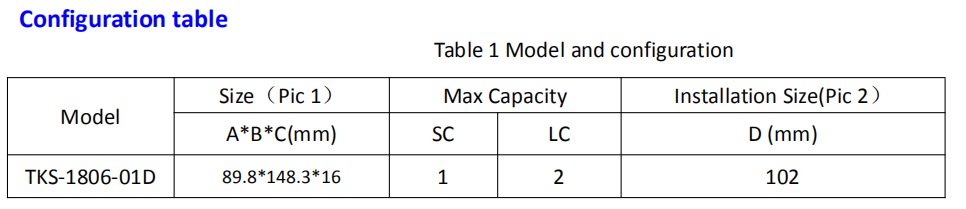

Drill 2 holes over the wall based on the size in table 1，place the expansion boltΦ5.5*30，place the box to match up

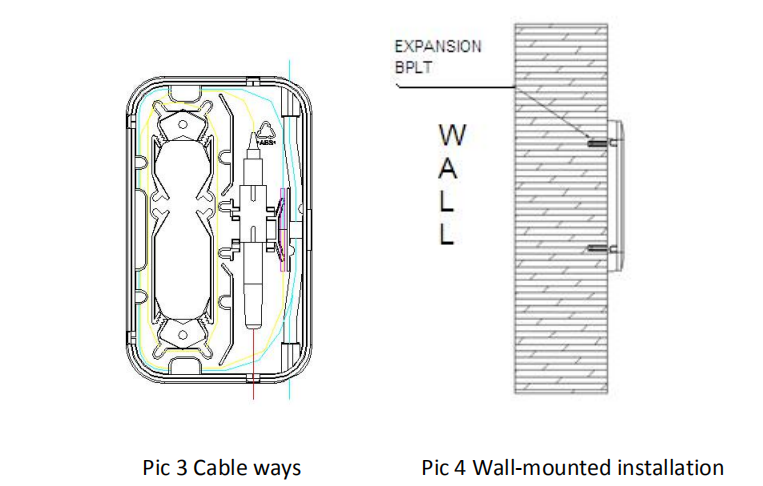

the holes and use bolt to fasten。(see Pic 4)
