Features

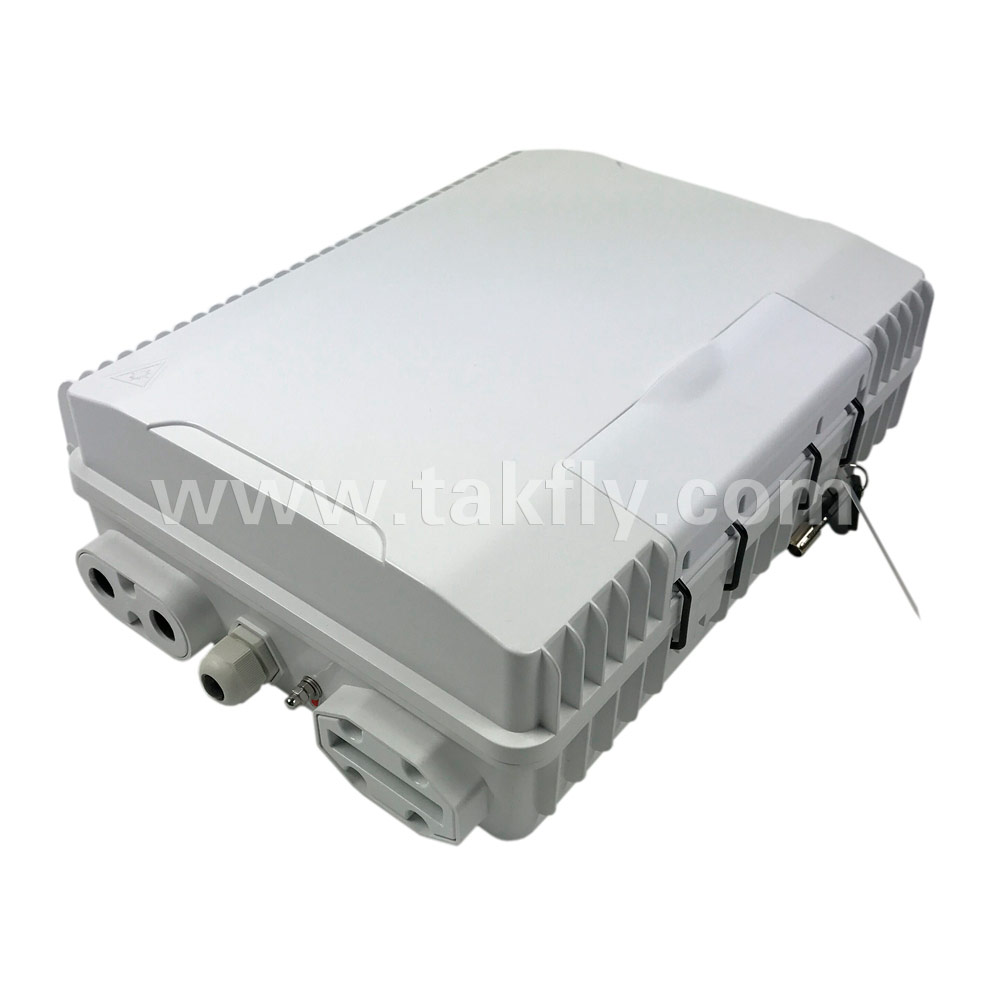

Total enclosed structure.
Material is PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

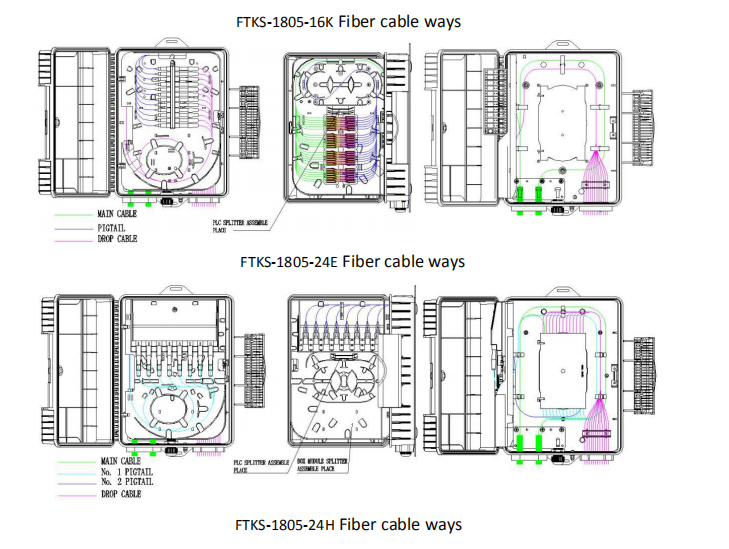

Cable，pigtails，patch cords are running through own path without disturbing each other, cassette type SC adaptor
installation, easy maintenance.

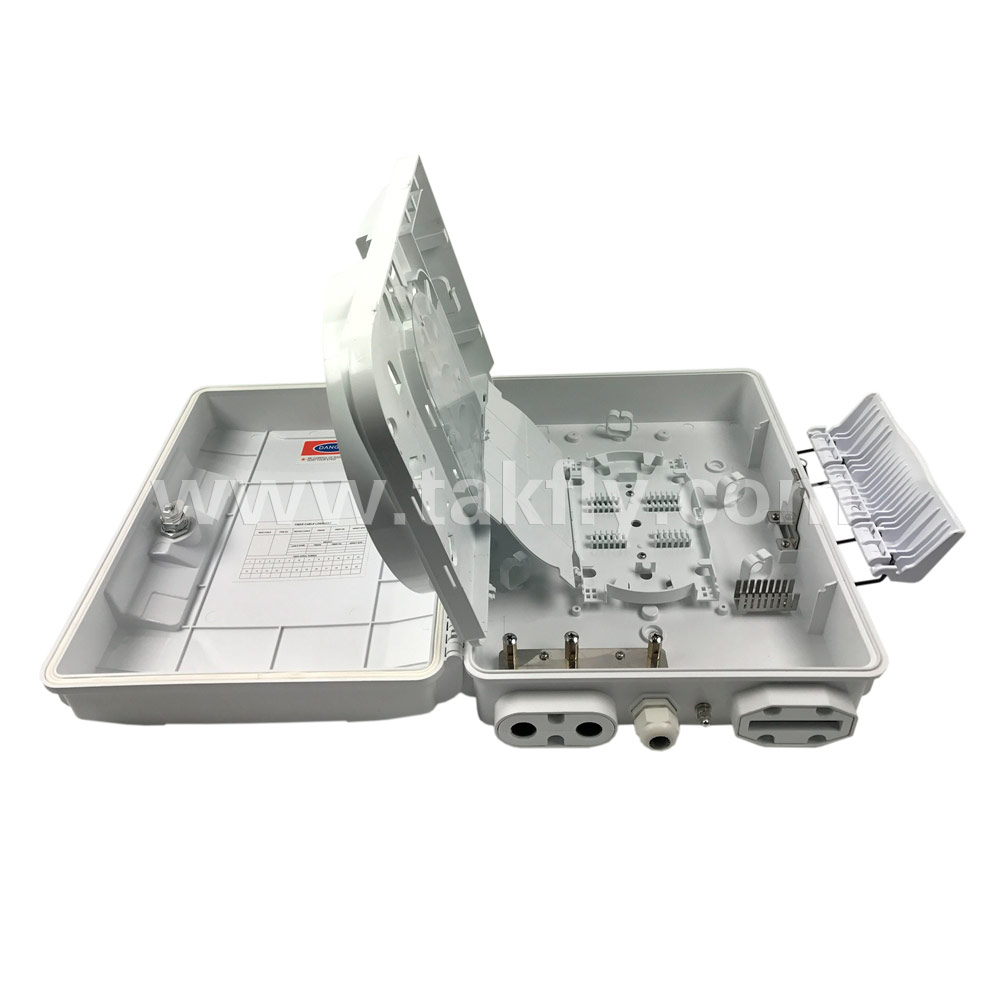

Distribution panel can be flipped up, feeder cable can be placed in a expression-port，aintenance and installation.
Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Specification
1. Environmental requirement
Working temperature：-40℃～+60℃
Relative humidity：≤85%（+30℃）
Atmospheric pressure：70KPa～106Kpa
2. Main technical datasheet
Insertion loss：≤0.2dB
UPC return loss：≥50dB
APC return loss：≥60dB
Life of insertion and extraction：＞1000 times
3. Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2 410MΩ/500V（DC） ，
IR≥2410MΩ/500V。
The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no
flashover；U≥3000V
