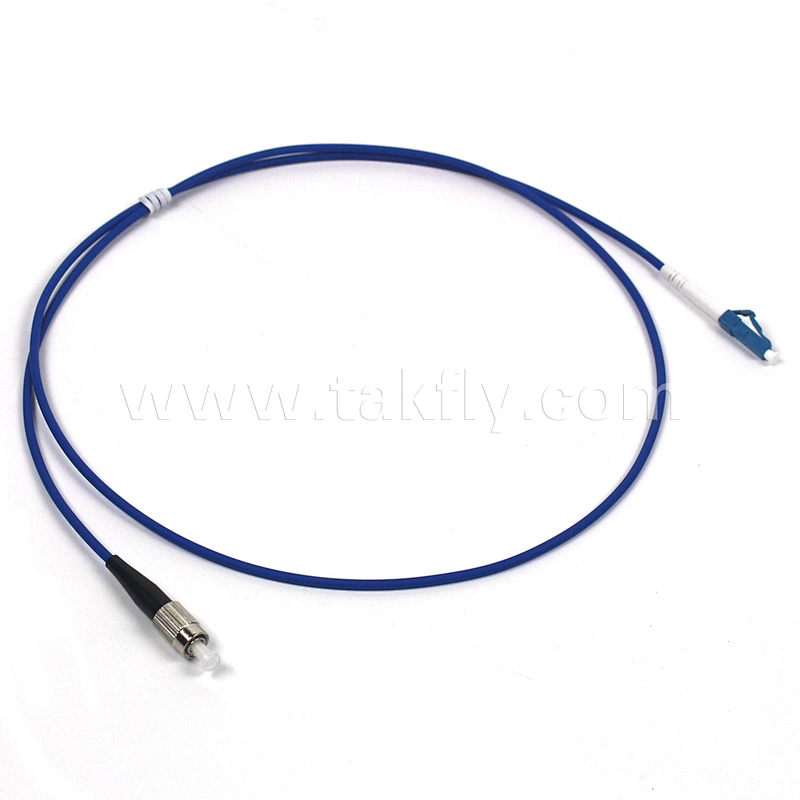

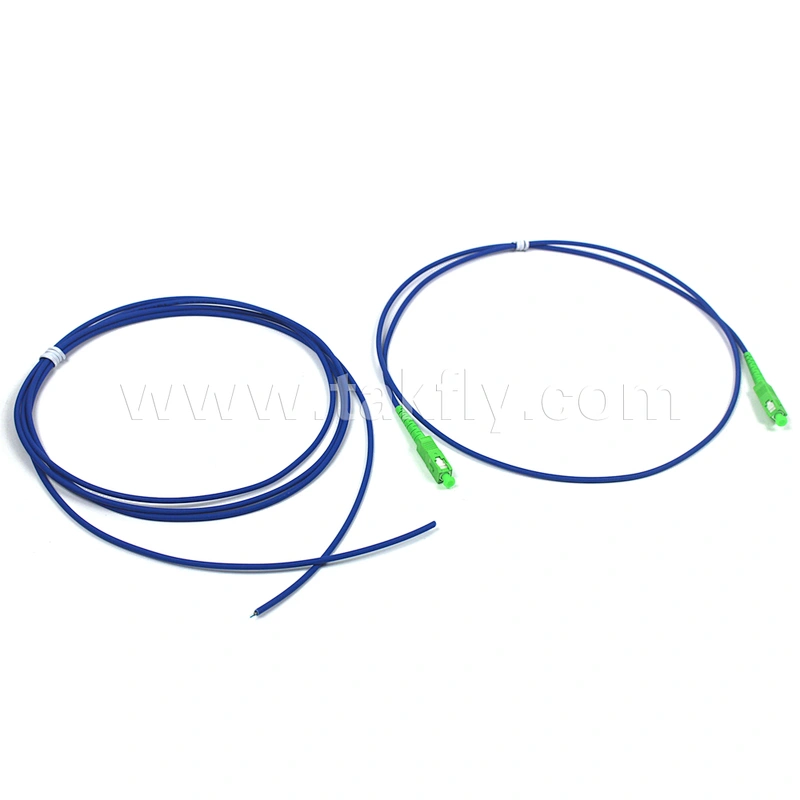

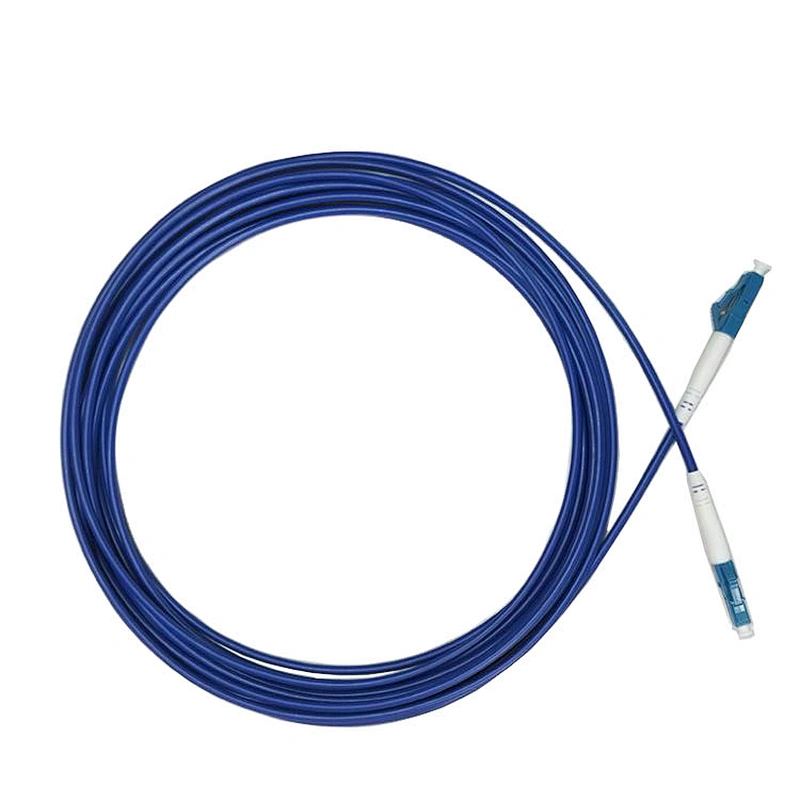

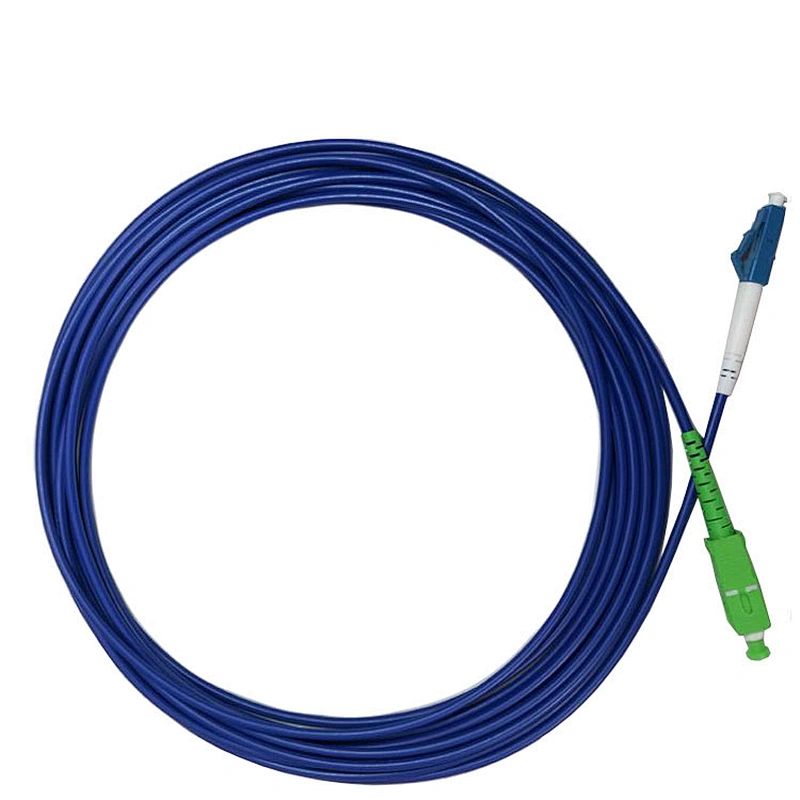

SC/LC/FC/ST SM SX Armored 3.0mm patch cord
SC/LC/FC/ST SM SX Armored 3.0mm patch cord
SC/LC/FC/ST SM SX Armored 3.0mm patch cord
SC/LC/FC/ST SM SX Armored 3.0mm patch cord
SC/LC/FC/ST SM SX Armored 3.0mm patch cord
SC/LC/FC/ST SM SX Armored 3.0mm patch cord
SC/LC/FC/ST SM SX Armored 3.0mm patch cord
SC/LC/FC/ST SM SX Armored 3.0mm patch cord
SC/LC/FC/ST SM SX Armored 3.0mm patch cord

SC/LC/FC/ST SM SX Armored 3.0mm patch cord

Model NO.
TK-PC-Aomored
Price:
US $ 1.10-1.50 / pieces
Delivery
EXW
Minimum order quantity
100 pieces
Supply Ability
100000 pieces / Week
Country of Origin
China
Stock Time
3-5 Days
Quantity:

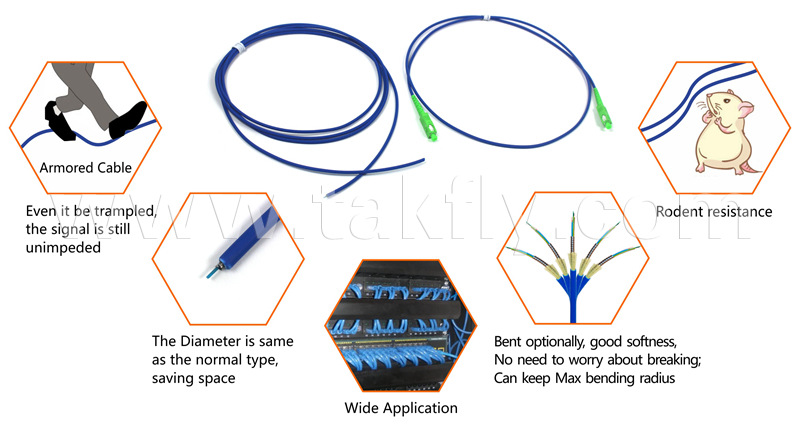

Features

  • Connector type SC, LC, FC, ST, E2000 etc.
  • Stainless steel tube provides good protection against physical damage.
  • Single mode and Multimode, Simplex and Duplex
  • Cable 0.9mm, 2.0mm, 2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 core
  • Custom order length
  • Cable out jacket: PVC, LSZH, OFNP, OFNR etc.
  • IEC standard compatible
  • GR-326- CORE Compliant

Specification
ItemMode TypePCUPCAPC
Insertion LossSM≤0.3dB≤0.2dB≤0.3dB
MM≤0.3dB≤0.2dB≤0.3dB
Return LossSM≥35dB≥50dB≥60dB
MM≥25dB≥35dB≥35dB
Repetition TestAdditional Loss≤0.1dB, Return Loss Variability＜5dB
Temperature Stability(-40℃-85℃)Additional Loss≤0.2dB, Return Loss Variability＜5dB
Cable Diameter3.0mm
Cable JacketSingle Armored
Cable ColorBlue or others
Bend Radius40mm
Tensile Loads100-132 lbs
Cable MaterialStainless steel tube, PVC/LSZH
Operating Temperature-40℃~+75℃
Storage Temperature-40℃~+75℃


  • Model Number：TK-PC-Armored
  • Brand Name：Takfly
  • Place of Origin：Shenzhen, China
Applications
  • Direct buried outside plant
  • Telecommunication networks
